    • Product Description

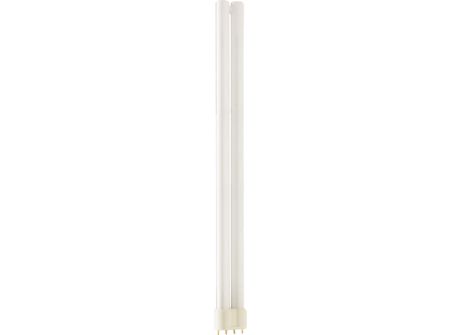

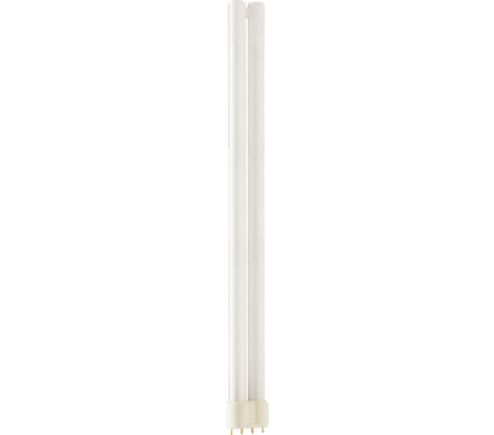

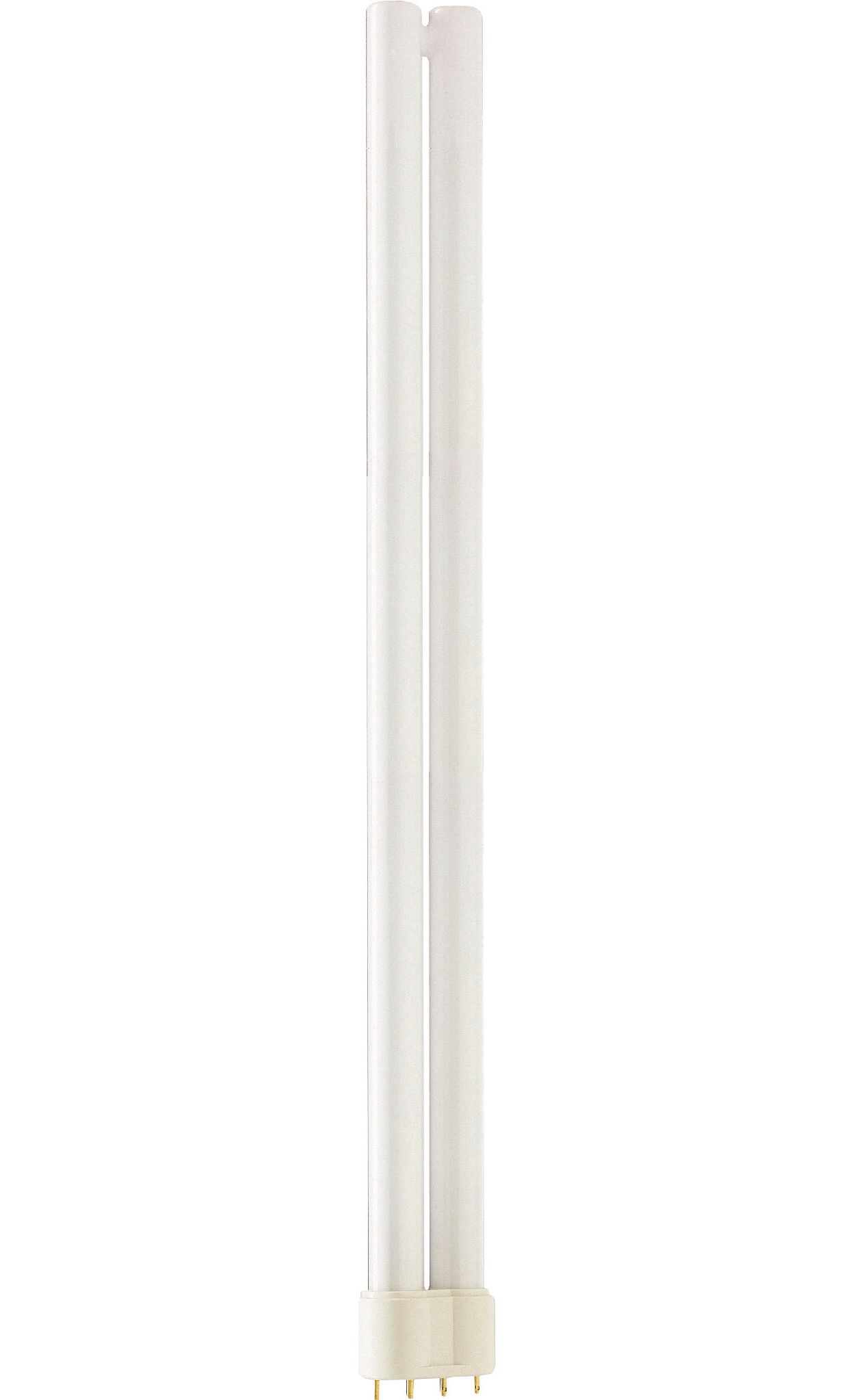

      MASTER PL-L 32W/865/4P 1CT/25
      MASTER PL-L 32W/865/4P 1CT/25

      MASTER PL-L 32W/865/4P 1CT/25

      Order code: 927907986501

      Full Product Code: 871150027922400

      Downloads

      Leaflet
      Size:331.1 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    2G11  [ 2G11]
    Life to 50% failures preheat (nom.)
    12000 h
    Light Technical
    Colour Code
    865  [ CCT of 6,500 K]
    Lamp Luminous Flux 25°C EL (Nom)
    2700 lm
    Colour Designation
    Cool Daylight
    Lumen maintenance 2,000 hours (nom.)
    85 %
    Lumen maintenance 5,000 hours (nom.)
    80 %
    Colour Temperature, horizontal (Nom)
    6500 K
    Lamp Luminous Efficacy EM (Nom)
    87 lm/W
    Colour Rendering Index,horiz (Nom)
    79
    Operating and Electrical
    Power (Rated) (Nom)
    31 W
    Lamp current (nom.)
    0.32 A
    Voltage (Nom)
    95 V
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Cap-base information
    4P
    Approval and Application
    Energy efficiency label (EEL)
    A
    Mercury (Hg) content (nom.)
    2.0 mg
    Product Data
    Full product code
    871150027922400
    Order product name
    MASTER PL-L 32W/865/4P 1CT/25
    EAN/UPC – product
    8711500279224
    Order code
    927907986501
    SAP numerator – quantity per pack
    1
    SAP numerator – packs per outer box
    25
    Material no. (12 NC)
    927907986501
    SAP net weight (piece)
    104.000 g
    Installation Diagrams
    2G11
    2G11
    Photometrics
    LDPB_PLL4PAPR_865-Spectral power distribution B/W
    LDPB_PLL4PAPR_865-Spectral power distribution B/W
    LDPO_PLL4PAPR_865-Spectral power distribution Colour
    LDPO_PLL4PAPR_865-Spectral power distribution Colour
