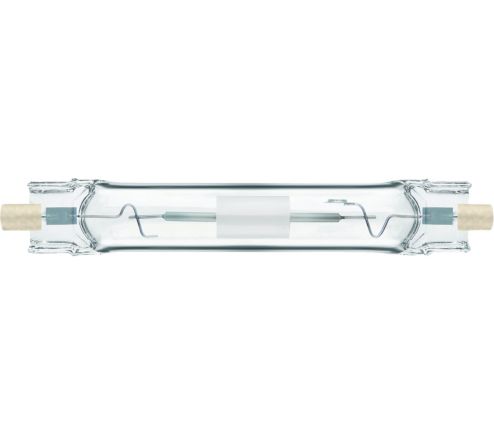

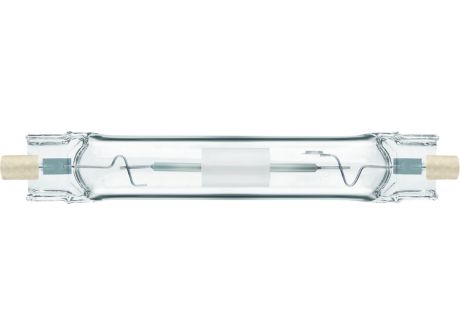

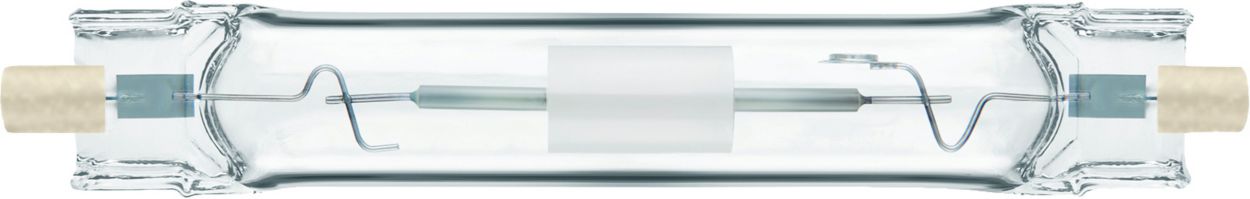

MASTERC CDM-TD 150W/830 RX7s 1CT

Specifications Show all

Operating and Electrical

Voltage (Nom)	98 V
Voltage (Nom)	98 V

Approval and Application

Energy Consumption kWh/1000 h	147 kWh
EPREL Registration Number	473334
Mercury (Hg) Content (Max)	10.2 mg
Mercury (Hg) Content (Nom)	10.23 mg
Energy Efficiency Class	G

Product Data

Numerator - Quantity Per Pack	1
Full product code	871150019784915
Material number (12NC)	928083605133
Full product name	MASTERC CDM-TD 150W/830 RX7s 1CT
Numerator - Packs per outer box	12
EAN/UPC - Case	8711500197856
Order product name	MASTERC CDM-TD 150W/830 RX7s 1CT
Order code	928083605133

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape	T22  [T 22mm]
Bulb Finish	Clear

General Information

Cap-Base	RX7S  [RX7s]
Operating Position	P45  [Parallel +/-45D or Horizontal(HOR)]
Flux measurement reference	Sphere

Light Technical

Color Code	830  [CCT of 3000K]
Color Designation	Warm White (WW)
Luminous Efficacy (rated) (Nom)	87 lm/W
Luminous Flux	12,750 lumen
Chromaticity Coordinate Y (Nom)	0.398
Chromaticity Coordinate X (Nom)	0.434
Correlated Color Temperature (Nom)	3000 K
Color rendering index (CRI)	88
