    • Product Description

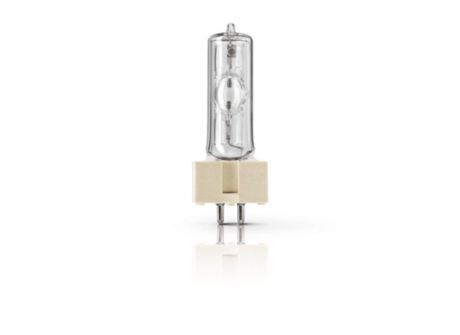

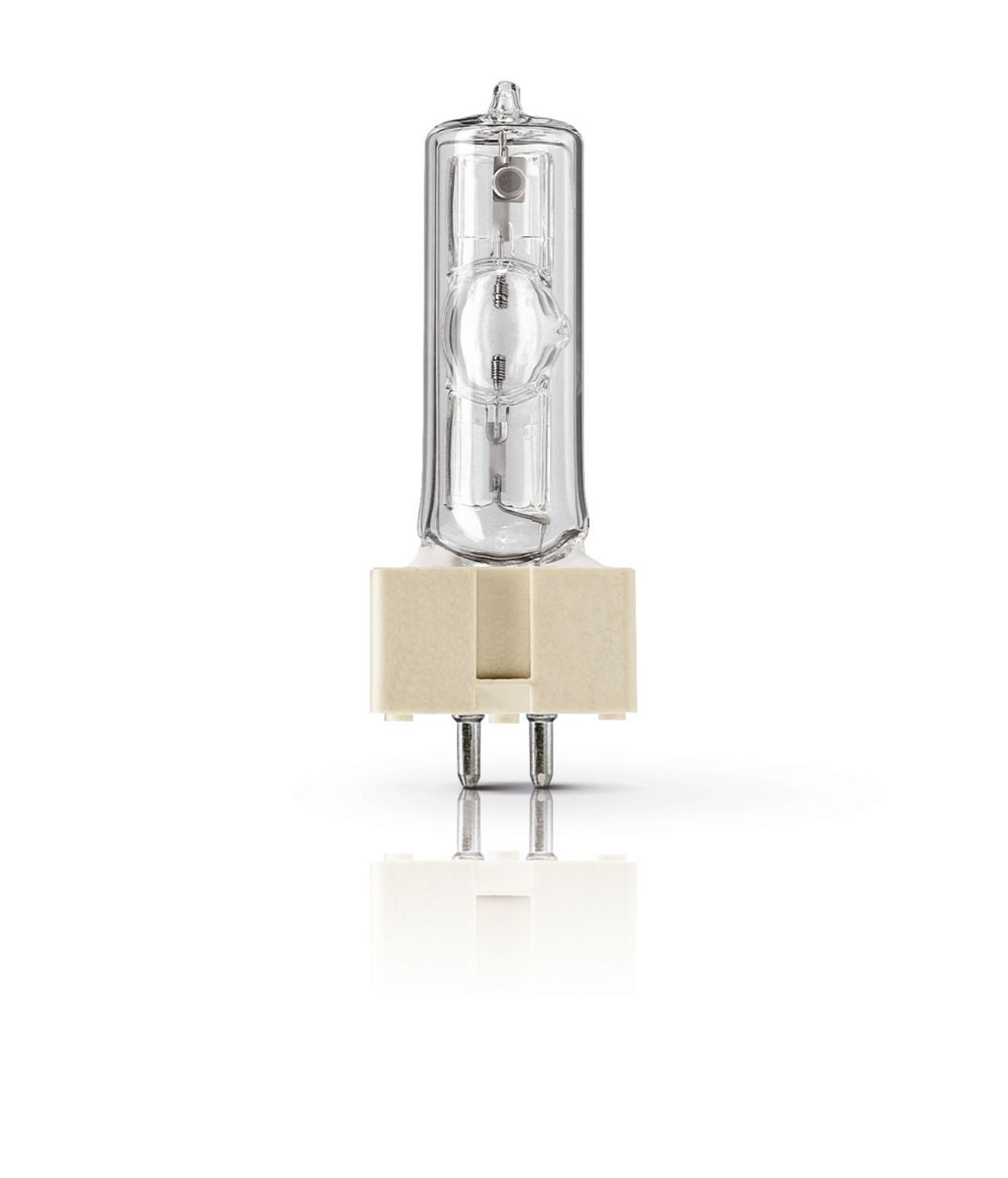

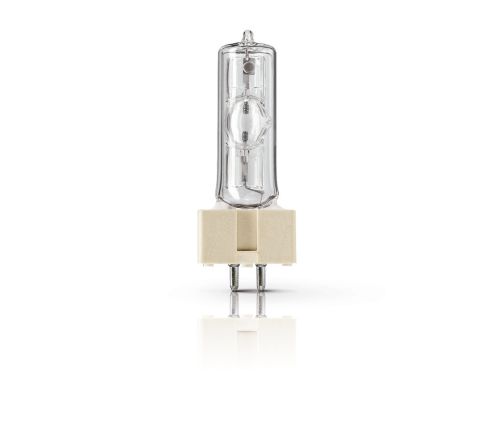

      MSD 575 1CT/16
      MSD 575 1CT/16

      MSD 575 1CT/16

      Order code: 928098805114

      Full Product Code: 872790091755000

      Downloads

      Leaflet
      Size:2.7 MB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    GX9.5  [ GX9.5]
    Burning Position
    UNIVERSAL  [ Any/Universal]
    Main application
    Studio/Disco
    Life to 50% failures (nom.)
    3000 h
    System description
    na  [ -]
    Light Technical
    Colour Code
    -  [ Not Specified]
    Lamp Luminous Flux 25°C EL (Min)
    38700 lm
    Lamp Luminous Flux 25°C EL (Nom)
    43000 lm
    Chromaticity coordinate X (nom.)
    323
    Chromaticity coordinate Y (nom.)
    317
    Colour Temperature, horizontal (Nom)
    6000 K
    Lamp Luminous Efficacy EM (Min)
    68 lm/W
    Lamp Luminous Efficacy EM (Nom)
    75 lm/W
    Colour Rendering Index,horiz (Nom)
    72
    Operating and Electrical
    Power (Rated) (Nom)
    575 W
    Lamp current (nom.)
    7.6 A
    Ignition supply voltage (min.)
    207 V
    Controls and Dimming
    Dimmable
    no
    Mechanical and Housing
    Cap base information
    na  [ -]
    Luminaire Design Requirements
    Bulb temperature (max.)
    700 °C
    Pinch temperature (max.)
    350 °C
    Product Data
    Full product code
    872790091755000
    Order product name
    MSD 575 1CT/16
    EAN/UPC – product
    8727900917550
    Order code
    928098805114
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    16
    Material no. (12NC)
    928098805114
    Net weight (piece)
    0.062 kg
    Installation Diagrams
    GX9.5
    GX9.5
    Photometrics
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 2.7 MB
    Visuals
