    • MSR Gold™ FastFit – easy lamp replacement in seconds

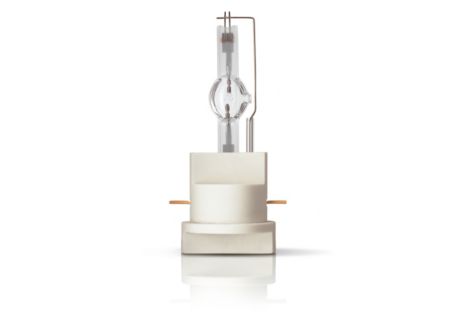

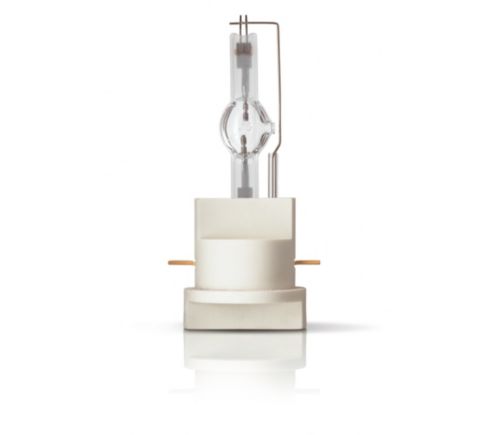

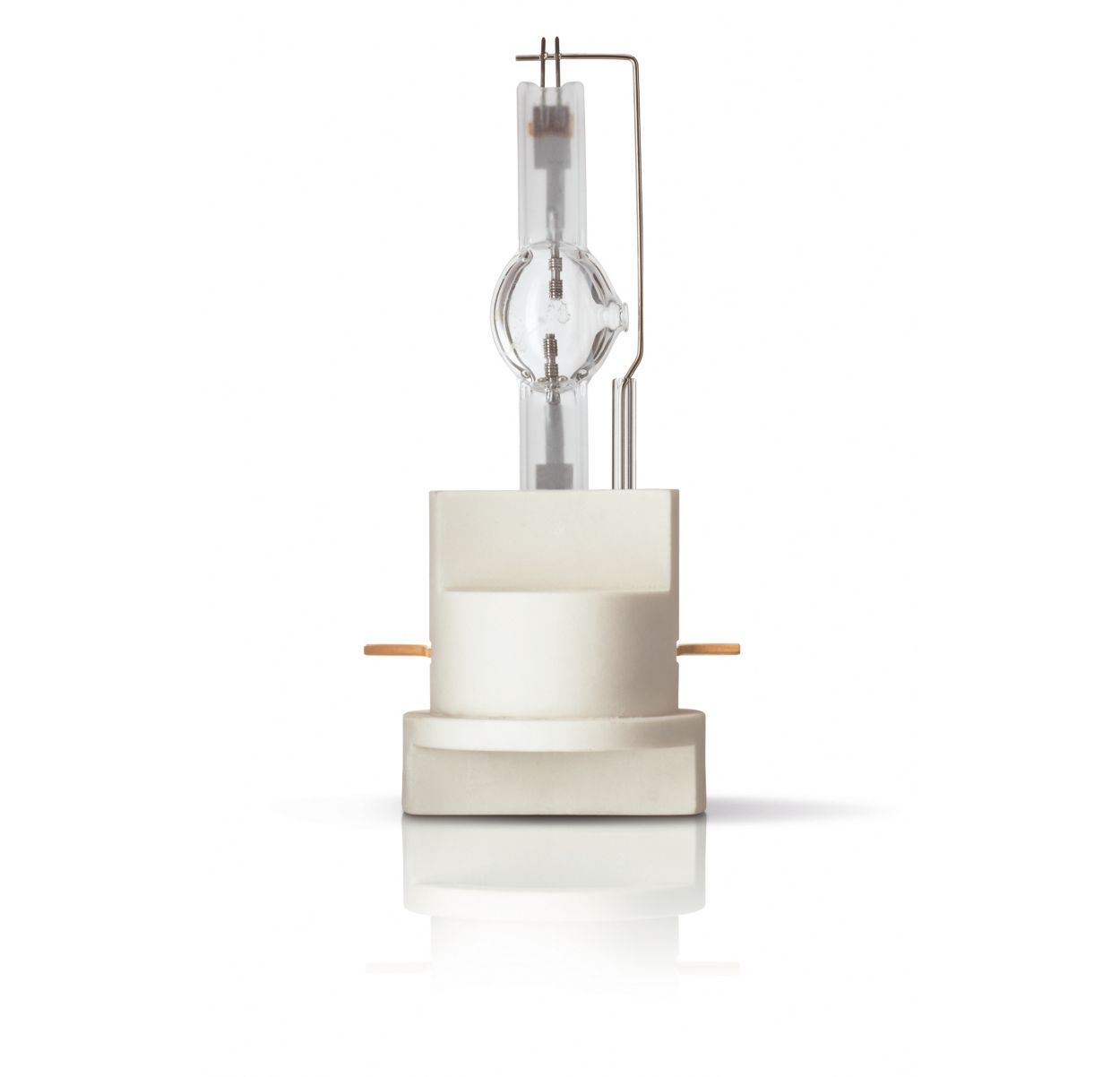

      MSR Gold™ 700/2 FastFit 1CT/8
      MSR Gold™ 700/2 FastFit 1CT/8

      MSR Gold™ 700/2 FastFit 1CT/8

      Order code: 928106205114

      Full Product Code: 872790090850300

      Downloads

      Leaflet
      Size:468.6 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    PGJX50  [ PGJX50]
    Burning Position
    UNIVERSAL  [ Any/Universal]
    Main application
    Entertainment
    Life to 50% failures (nom.)
    750 h
    System description
    FastFit
    Light Technical
    Colour Code
    2
    Lamp Luminous Flux 25°C EL (Min)
    41800 lm
    Lamp Luminous Flux 25°C EL (Nom)
    50000 lm
    Chromaticity coordinate X (nom.)
    298
    Chromaticity coordinate Y (nom.)
    322
    Colour Temperature, horizontal (Nom)
    7500 K
    Lamp Luminous Efficacy EM (Nom)
    71 lm/W
    Colour Rendering Index,horiz (Nom)
    75
    Operating and Electrical
    Power (Rated) (Nom)
    700 W
    Lamp current (nom.)
    10.2 A
    Ignition supply voltage (min.)
    198 V
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Cap-base information
    PGJX50
    Luminaire Design Requirements
    Bulb temperature (max.)
    950 °C
    Pinch temperature (max.)
    500 °C
    Product Data
    Full product code
    872790090850300
    Order product name
    MSR Gold™ 700/2 FastFit 1CT/8
    EAN/UPC – product
    8727900908503
    Order code
    928106205114
    SAP numerator – quantity per pack
    1
    SAP numerator – packs per outer box
    8
    Material no. (12 NC)
    928106205114
    SAP net weight (piece)
    0.100 kg
    Installation Diagrams
    PGJX50
    PGJX50
    OpPos_any.eps-Operating position
    OpPos_any.eps-Operating position
    Photometrics
    XDPB_XDMSR_0001-Spectral power distribution B/W
    XDPB_XDMSR_0001-Spectral power distribution B/W
