    • Product Description

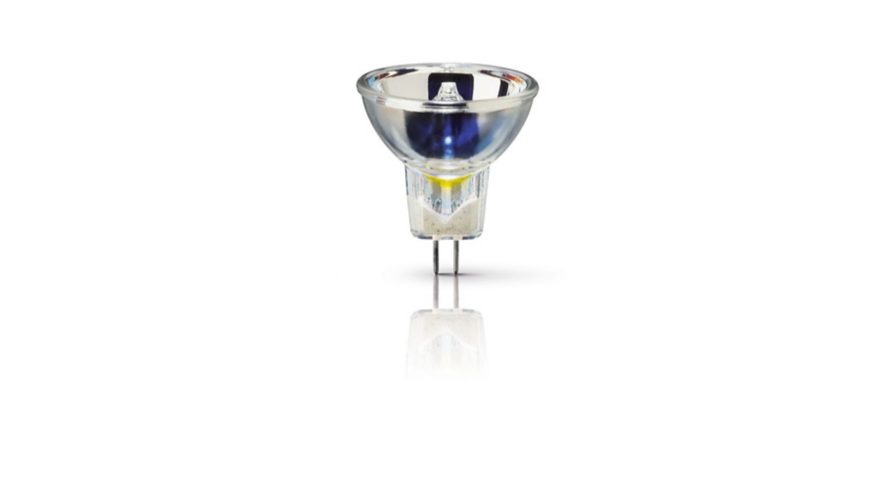

      13528 15W GZ4 6V 1CT/24
      13528 15W GZ4 6V 1CT/24

      13528 15W GZ4 6V 1CT/24

      Order code: 923883810105

      Full Product Code: 871869668993600

      Downloads

      Leaflet
      Size:370.5 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    GZ4  [ GZ4]
    Philips code
    13528
    ANSI Code
    -
    LIF code
    -
    Burning Position
    S105  [ s105]
    Main application
    Projection
    Life to 50% failures (nom.)
    750 h
    J code
    -
    Light Technical
    Colour Temperature, horizontal (Nom)
    2900 K
    Colour Rendering Index,horiz (Nom)
    100
    Operating and Electrical
    Power (Rated) (Nom)
    15 W
    Voltage (Nom)
    6 V
    Controls and Dimming
    Dimmable
    yes
    Mechanical and Housing
    Cap base information
    na  [ -]
    Bulb material
    Quartz-UV Open
    Reflector finish
    Smooth
    Filament shape
    -
    Filament dimensions WxH
    -
    Luminaire Design Requirements
    Bulb temperature (max.)
    900 °C
    Pinch temperature (max.)
    350 °C
    Working distance WD
    92 mm
    Product Data
    Full product code
    871869668993600
    Order product name
    13528 15W GZ4 6V 1CT/24
    EAN/UPC – product
    8718696689936
    Order code
    923883810105
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    24
    Material no. (12NC)
    923883810105
    Net weight (piece)
    12.000 g
    Installation Diagrams
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 370.5 kB
