    • Product Description

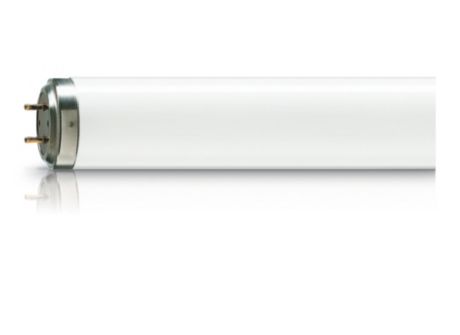

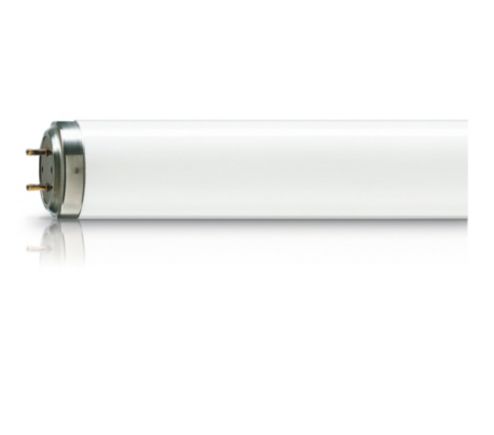

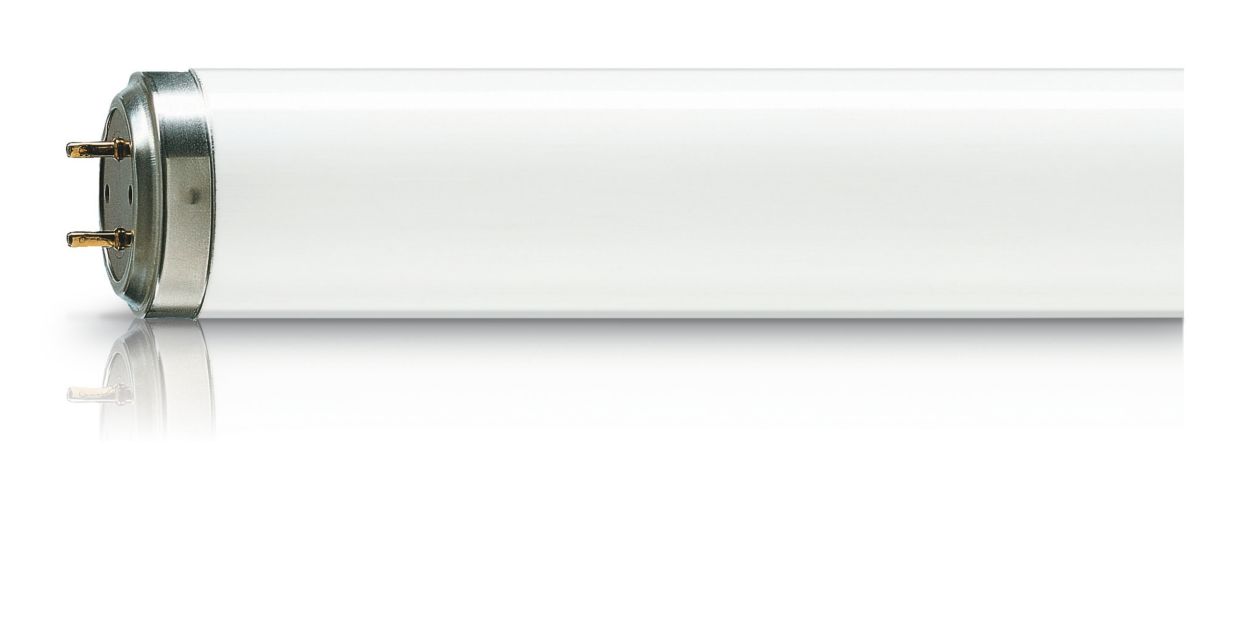

      TL 120W/01
      TL 120W/01
      UV-B Narrowband TL

      TL 120W/01

      Order code: 928035200101

      Full Product Code: 871150026483140

      Downloads

      Leaflet
      Size:2.6 MB

      See all downloads

    Specifications Show all

    General information
    Cap base
    G13  [ Medium Bi-Pin Fluorescent]
    Main application
    -
    Life to 50% failures (nom.)
    1000 h
    Useful life (nom.)
    1000 h
    Light technical
    Colour Code
    01
    Colour Designation
    Ultra Violet B
    Chromaticity coordinate X (nom.)
    220
    Chromaticity coordinate Y (nom.)
    220
    Depreciation at 500 Hours
    10 %
    UV depreciation at 1,000 h
    15 %
    Operating and electrical
    Power (Rated) (Nom)
    116 W
    Lamp current (nom.)
    1.110 A
    Voltage (Nom)
    127 V
    Mechanical and housing
    Cap-base information
    No Adaptor
    Bulb shape
    T38  [ T 38mm]
    Approval and application
    Mercury (Hg) content (nom.)
    13.0 mg
    UV
    UV-B radiation 100 hours (IEC)
    17 W
    UV-B radiation 5 hours (IEC)
    19.7 W
    Product data
    Full product code
    871150026483140
    Order product name
    TL 120W/01
    EAN/UPC – product
    8711500264831
    Order code
    928035200101
    SAP numerator – quantity per pack
    1
    Numerator – packs per outer box
    25
    SAP material
    928035200101
    Net Weight (Piece)
    502.000 g
    Installation Diagrams
    G13
    G13
    Photometrics
    Lightcolour /01
    Lightcolour /01
    Lightcolour /01
    Lightcolour /01
