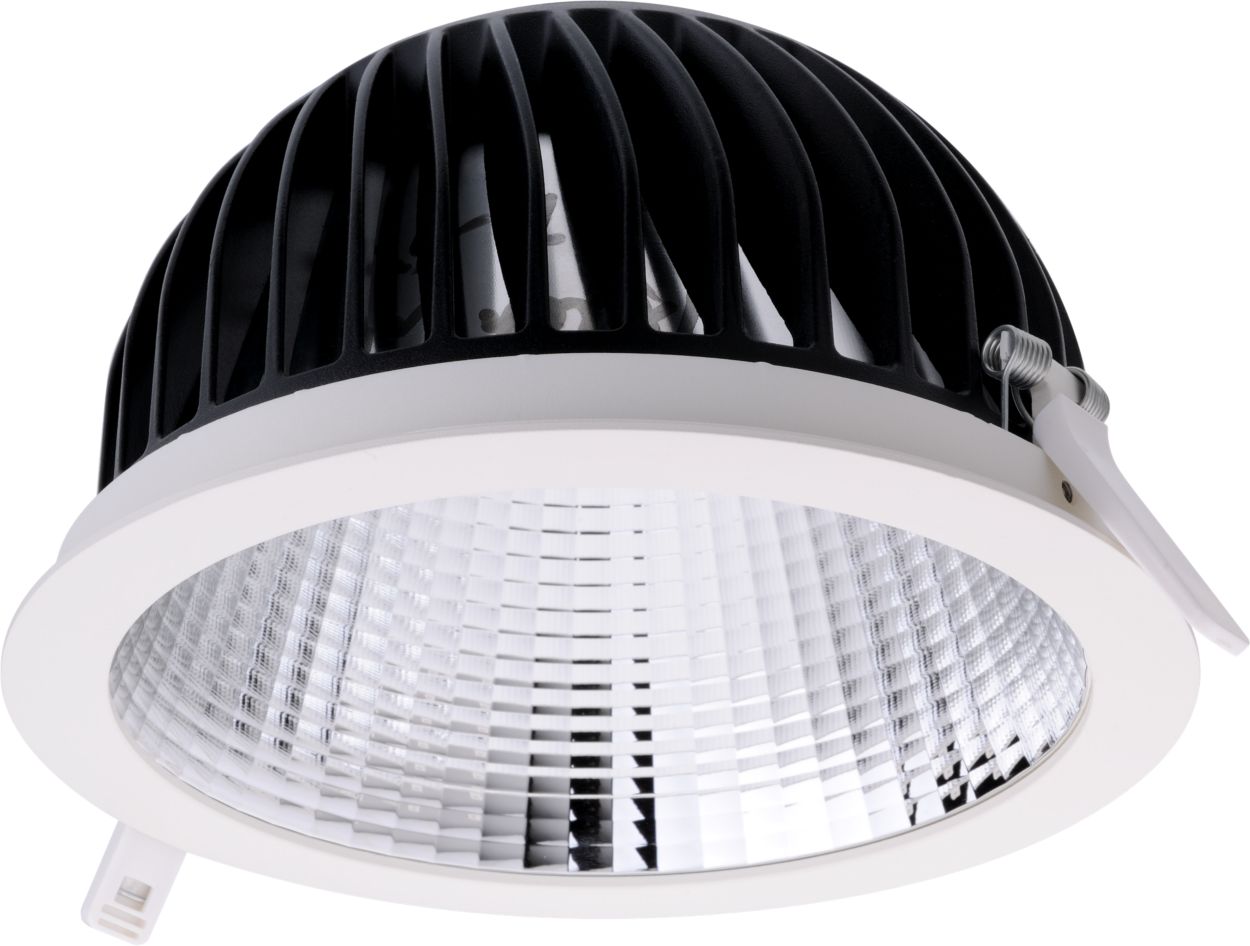

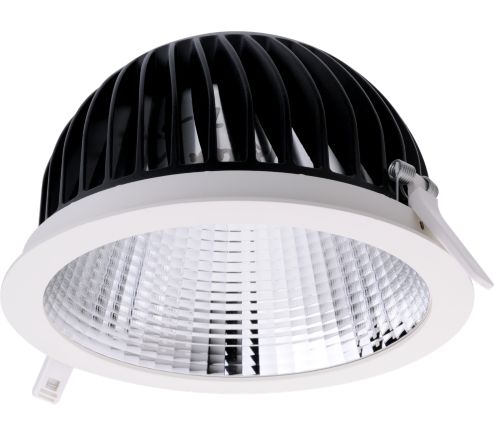

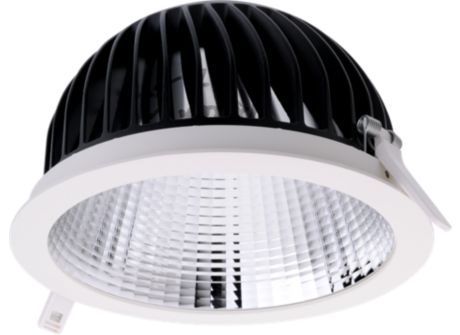

    • Miniaturised downlight with leading optical performance and great diversity

      DN592B LED25/840 POE C D200  WH WB GM
      DN592B LED25/840 POE C D200  WH WB GM

      DN592B LED25/840 POE C D200 WH WB GM

      Order code: 911401554441

      Full Product Code: 911401554441

      Downloads

      Leaflet
      Size:494.8 kB

      See all downloads

    Specifications Show all

    General Information
    Lamp colour code
    840 neutral white
    Light source replaceable
    No
    Number of gear units
    1 unit
    Driver/power unit/transformer
    PSU-E  [ Power supply unit external (PSU)]
    Driver included
    Yes
    Optic type
    Faceted reflector with beam angle 60°
    Optical cover/lens type
    Reflector
    Control interface
    Power over Ethernet
    Connection
    RJ45  [ RJ45 connector]
    Protection class IEC
    Safety class III (III)
    Glow-wire test
    650/30  [ Temperature 650 °C, duration 30 s]
    Flammability mark
    F  [ For mounting on normally flammable surfaces]
    CE mark
    CE mark
    Warranty period
    3 years
    Constant light output
    No
    Number of products on MCB (16 A type B)
    -
    EU RoHS compliant
    Yes
    LED engine type
    LED
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input frequency
    50 or 60 Hz
    Power factor (min.)
    0.9
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Housing material
    Aluminum die–cast
    Reflector material
    Polycarbonate aluminum coated
    Optic material
    Polycarbonate
    Optical cover/lens material
    Polycarbonate
    Fixation material
    Steel
    Optical cover/lens finish
    Textured
    Overall length
    0 mm
    Overall width
    0 mm
    Overall height
    130 mm
    Overall diameter
    212 mm
    Colour
    White and black
    Approval and Application
    Ingress protection code
    IP20  [ Finger-protected]
    Mech. impact protection code
    IK03  [ 0.3 J]
    Initial Performance (IEC Compliant)
    Initial luminous flux
    2600 lm
    Luminous flux tolerance
    +/-10%
    Initial LED luminaire efficacy
    113 lm/W
    Lamp colour temperature
    4000 K
    Colour Rendering Index
    >80
    Initial input power
    23 W
    Power consumption tolerance
    +/-10%
    Over Time Performance (IEC Compliant)
    Median useful life L70B50
    50000 h
    Median useful life L80B50
    50000 h
    Median useful life L90B50
    21000 h
    Application Conditions
    Ambient temperature range
    -20 to +40 °C
    Maximum dimming level
    30%
    Product Data
    Full product code
    911401554441
    Order product name
    DN592B LED25/840 POE C D200 WH WB GM
    Order code
    911401554441
    Numerator – quantity per pack
    1
    SAP numerator – packs per outer box
    1
    Material no. (12 NC)
    911401554441
    SAP net weight (piece)
    1.400 kg
    Installation Diagrams
    DN583B POE C D200
    DN583B POE C D200
