| Power Factor (Fraction) | 0.9
|
| Line Frequency | 50 or 60
Hz
|
| Number of products on MCB of 16 A type B | 48
|
| Input Voltage | 110 to 240
V
|
| Input Frequency | 50 or 60
Hz
|
| Inrush current | 8.4
A
|
| Ingress protection code | IP20
[Finger-protected] |
| Mech. impact protection code | IK03
[0.3 J] |
| Flammability mark | -
|
| CE mark | -
|
| Protection class IEC | Safety class II
|
| Numerator - Quantity Per Pack | 1
|
| Full product code | 871951494422099
|
| Material number (12NC) | 911401826984
|

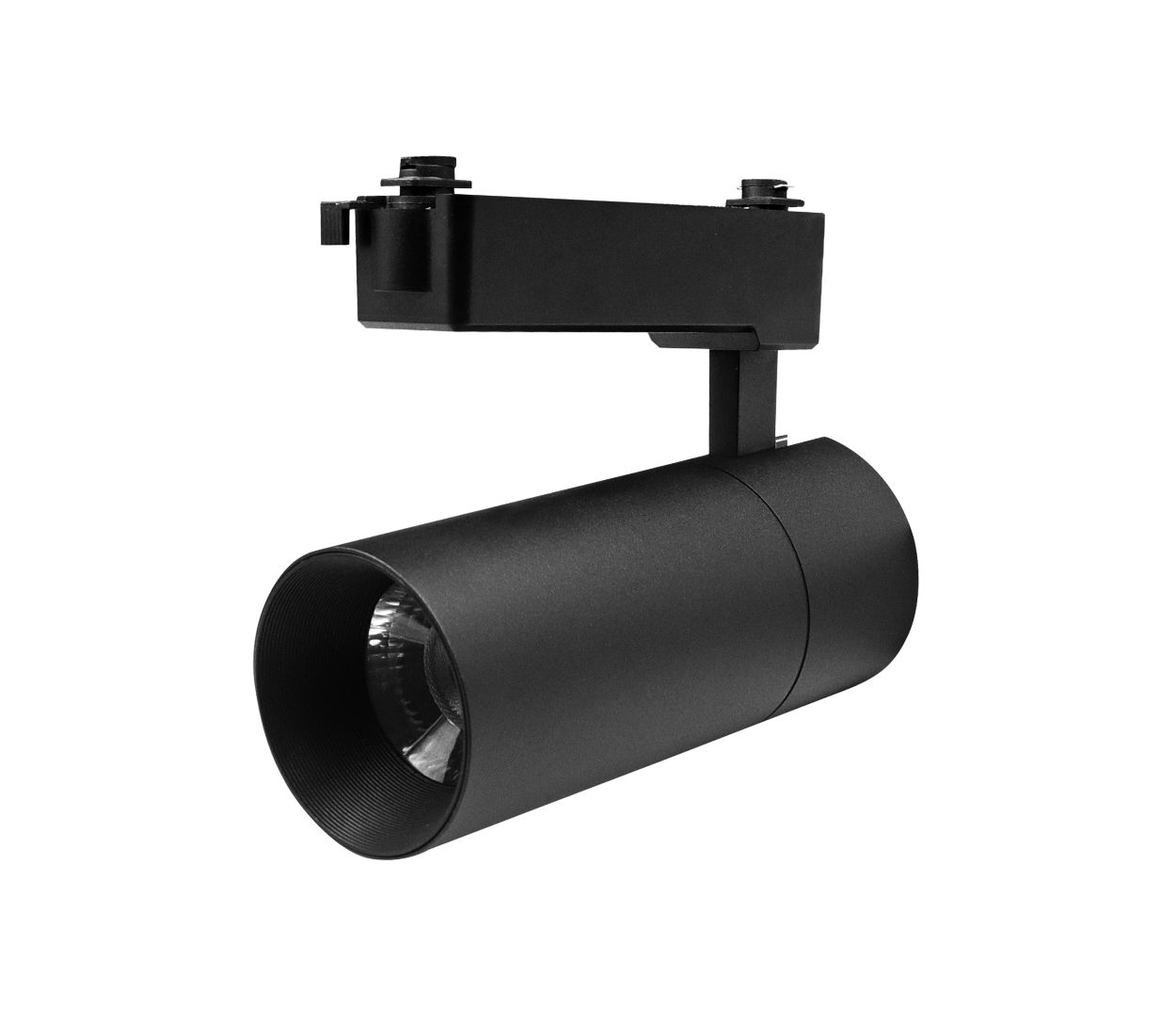

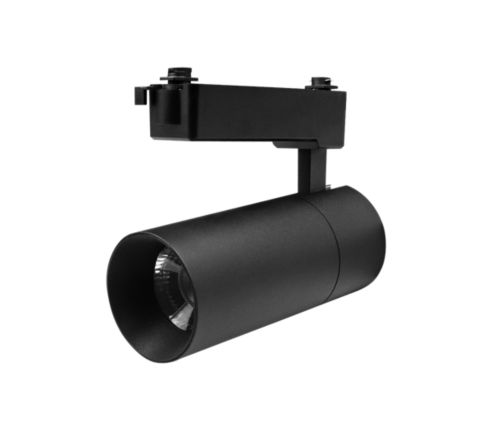

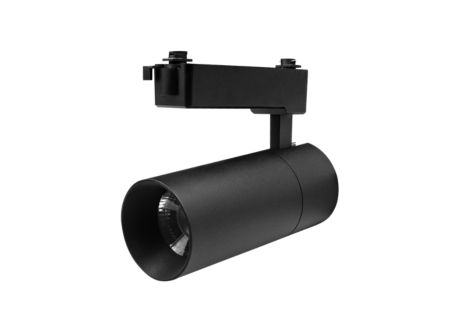

| Full product name | ST033T LED25/830 30W 110-240V I WB BK KC
|
| Numerator - Packs per outer box | 24
|
| EAN/UPC - Case | 8719514944268
|
| Order product name | ST033T LED25/830 30W 110-240V I WB BK KC
|
| Order code | 911401826984
|
| Control interface | -
|
| Dimmable | No
|
| Light source engine type | LED
|
| Housing Color | Black
|
| Overall width | 76
mm
|
| Optical cover/lens finish | Textured
|
| Optical cover/lens material | Polycarbonate
|
| Dimensions (Height x Width x Depth) | 235 x 76 x 93 mm
|
| Housing Material | Aluminum
|
| Overall height | 235
mm
|
| Overall length | 93
mm
|
| Overall diameter | 76
mm
|
| Luminous flux tolerance | +/-10%
|
| Initial chromaticity | (0.43, 0.40) SDCM <5
|
| Power consumption tolerance | +/-10%
|
| Ambient temperature range | -20 to +45 °C
|
| Luminous Efficacy (rated) (Nom) | 80
lm/W
|
| Light source color | 830 warm white
|
| Optical cover/lens type | Polycarbonate micro lens optic
|
| Luminous Flux | 2,400
lumen
|
| Correlated Color Temperature (Nom) | 3000
K
|
| Color rendering index (CRI) | >80
|
