    • Energy saving without compromise.

      RC100B LED37S 840 W30L120 PSU G3
      RC100B LED37S 840 W30L120 PSU G3

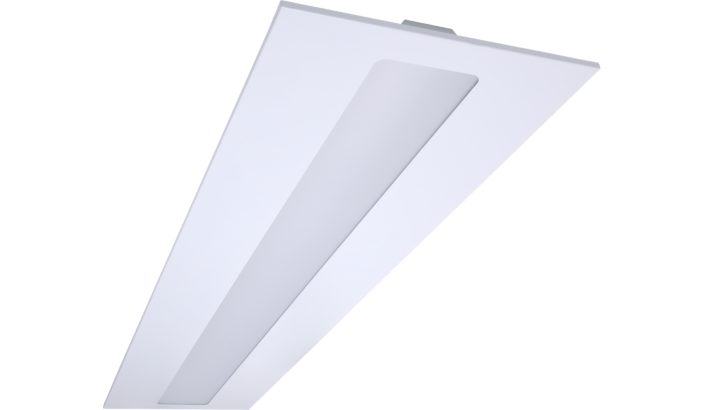

      GreenPerform Troffer

      RC100B LED37S 840 W30L120 PSU G3

      Downloads

      Leaflet
      Size:353.0 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Factor (Fraction)
    0.9
    Inrush time
    62 ms
    Line Frequency
    50 to 60 Hz
    Number of products on MCB of 16 A type B
    24
    Input Voltage
    220 to 240 V
    Input Frequency
    50 to 60 Hz
    Inrush current
    3 A
    Over Time Performance (IEC Compliant)
    Median useful life L70B50
    50,000 hour(s)
    Approval and Application
    Ingress protection code
    IP20  [Finger-protected]
    Glow-wire test
    Temperature 600 °C, duration 30 s
    Flammability mark
    For mounting on normally flammable surfaces
    Mech. impact protection code
    IK03  [0.3 J]
    CE mark
    CE mark
    Warranty period
    3 years
    Protection class IEC
    Safety class I
    Product Data
    Numerator - Quantity Per Pack
    1
    Full product code
    911401513351
    Material number (12NC)
    911401513351
    Full product name
    RC100B LED37S 840 W30L120 PSU G3
    Numerator - Packs per outer box
    2
    Order product name
    RC100B LED37S 840 W30L120 PSU G3
    Order code
    911401513351
    Controls and Dimming
    Control interface
    -
    Constant light output
    No
    Dimmable
    No
    General Information
    Light source engine type
    LED
    Number of gear units
    1 unit
    Light source replaceable
    No
    Driver included
    Yes
    Mechanical and Housing
    Overall width
    297 mm
    Housing Color
    White
    Optical cover/lens finish
    Ribbed
    Optical cover/lens material
    Polycarbonate
    Dimensions (Height x Width x Depth)
    46 x 297 x 1197 mm
    Overall height
    46 mm
    Optic material
    Polycarbonate
    Overall length
    1,197 mm
    Fixation material
    Steel
    Housing Material
    Metal
    Application Conditions
    Suitable for random switching
    No
    Initial Performance (IEC Compliant)
    Luminous flux tolerance
    +/-10%
    Initial chromaticity
    SDCM<4
    Power consumption tolerance
    +/-10%
    Temperature
    Ambient temperature range
    -20 to +40 °C
    Light Technical
    Luminous Efficacy (rated) (Nom)
    116 lm/W
    Light source color
    840 neutral white
    Optical cover/lens type
    Variable linear-lens array in polycarbonate cover
    Luminous Flux
    3,700 lumen
    Correlated Color Temperature (Nom)
    4000 K
    Color rendering index (CRI)
    80
    Installation Diagrams
    RC100B W30L120
    RC100B W30L120
