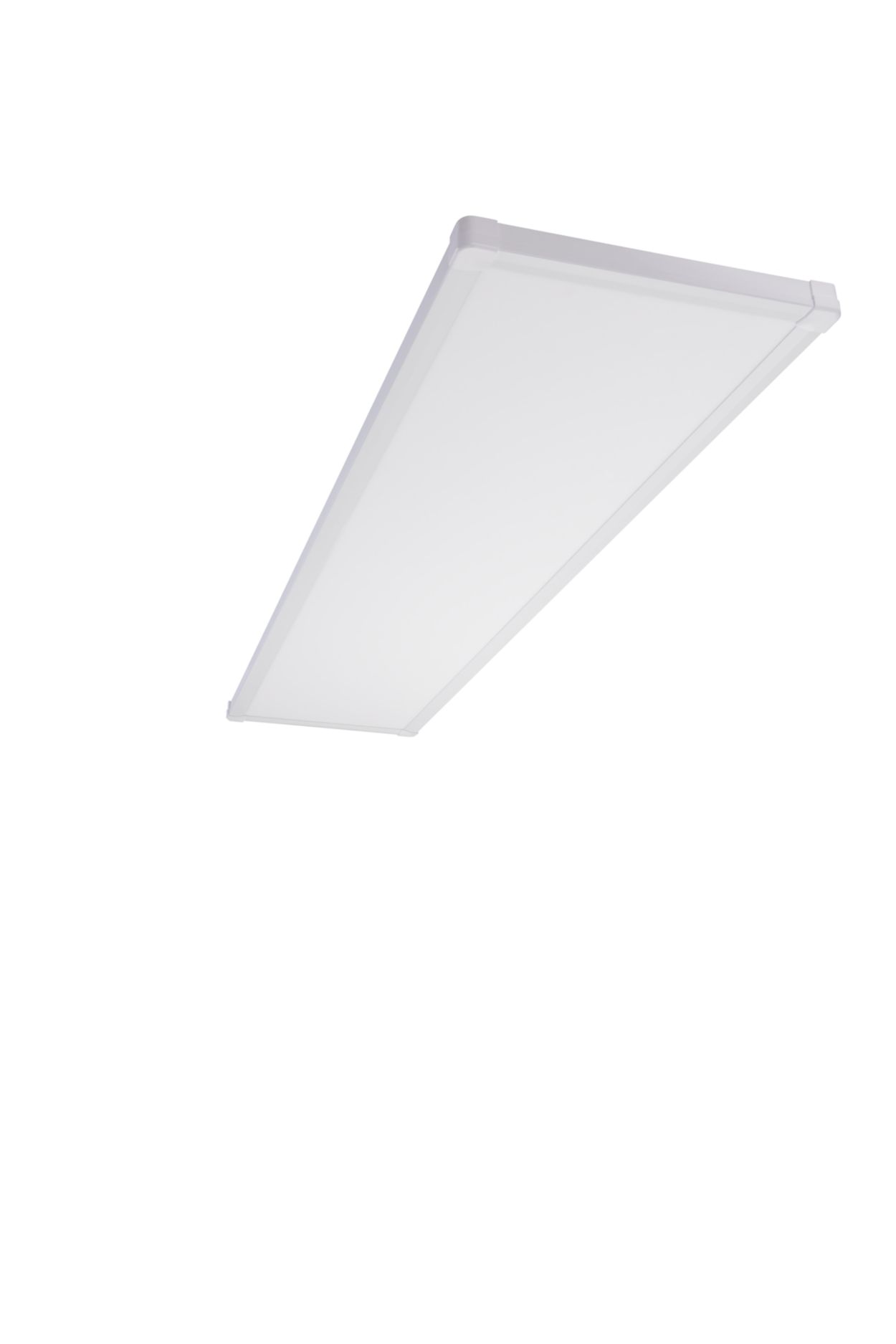

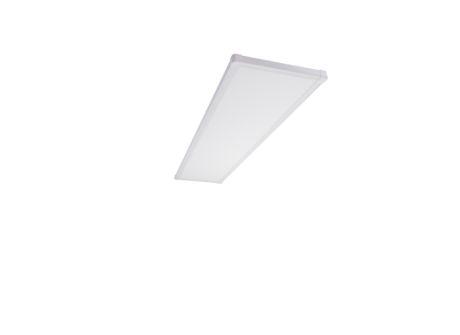

RC091V LED45S/840 PSU W32L128 KR

Specifications Show all

Operating and Electrical

Power Factor (Fraction)	0.9
Cable	Cable 0.75 m without plug
Line Frequency	50 or 60 Hz
Number of products on MCB of 16 A type B	30
Input Frequency	50 or 60 Hz
Input Voltage	220 to 240 V

Approval and Application

Ingress protection code	IP20  [Finger-protected]
Mech. impact protection code	IK02  [0.2 J standard]
CE mark	-
Warranty period	3 years
Protection class IEC	Safety class I

Over Time Performance (IEC Compliant)

Driver failure rate at 5000 h

0.01 %

Product Data

Numerator - Quantity Per Pack	1
Full product code	871016334133099
Material number (12NC)	911401746882
Full product name	RC091V LED45S/840 PSU W32L128 KR
Numerator - Packs per outer box	4
EAN/UPC - Case	8710163341392
Order product name	RC091V LED45S/840 PSU W32L128 KR
Order code	911401746882

Controls and Dimming

Control interface	-
Constant light output	No
Dimmable	No

General Information

Light source engine type	LED
Driver included	Yes

Mechanical and Housing

Housing Color	White
Overall width	320 mm
Optical cover/lens finish	Matte
Optical cover/lens material	Acrylate
Dimensions (Height x Width x Depth)	28 x 320 x 1285 mm
Overall height	27.6 mm
Overall length	1,285 mm
Housing Material	Aluminum extruded

Initial Performance (IEC Compliant)

Luminous flux tolerance	+/-10%
Initial chromaticity	840 neutral white
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-10 to +40 °C

Light Technical

Luminaire light beam spread	120° x 120°
Luminous Efficacy (rated) (Nom)	90 lm/W
Light source color	840 neutral white
Optical cover/lens type	Polystyrene bowl/cover prismatic
Luminous Flux	4,500 lumen
Correlated Color Temperature (Nom)	4000 K
Color rendering index (CRI)	>80
