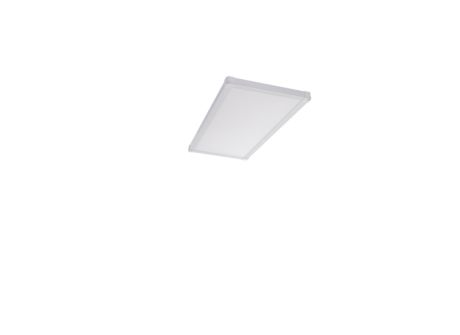

    • The new Philips Smartbright slim panel offers exceptional value. It is perfect for your everyday ceiling lighting installations. It is available in three standard sizes and two different CCT options to suit your needs.

      RC091V LED20S/857 PSU W32L64 KR
      RC091V LED20S/857 PSU W32L64 KR

      RC091V LED20S/857 PSU W32L64 KR

      Order code: 911401746922

      Full Product Code: 871016334137899

      Downloads

      Leaflet
      Size:329.6 kB

      See all downloads

    Specifications Show all

    General Information
    Lamp colour code
    857 daylight
    Driver included
    Yes
    Optical cover/lens type
    Polystyrene bowl/cover prismatic
    Luminaire light beam spread
    120° x 120°
    Control interface
    -
    Cable
    Cable 0.75 m without plug
    Protection class IEC
    Safety class I (I)
    CE mark
    -
    Warranty period
    3 years
    Constant light output
    No
    Number of products on MCB (16 A type B)
    47
    LED engine type
    LED
    Operating and Electrical
    Input Voltage
    220 to 240 V
    Input frequency
    50 or 60 Hz
    Power factor (min.)
    0.9
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Housing material
    Aluminum extruded
    Optical cover/lens material
    Acrylate
    Optical cover/lens finish
    Matte
    Overall length
    640 mm
    Overall width
    320 mm
    Overall height
    27.6 mm
    Colour
    White
    Approval and Application
    Ingress protection code
    IP20  [ Finger-protected]
    Mech. impact protection code
    IK02  [ 0.2 J standard]
    Initial Performance (IEC Compliant)
    Initial luminous flux
    2000 lm
    Luminous flux tolerance
    +/-10%
    Initial LED luminaire efficacy
    80 lm/W
    Lamp colour temperature
    5700 K
    Colour Rendering Index
    >80
    Initial chromaticity
    857 daylight
    Initial input power
    25 W
    Power consumption tolerance
    +/-10%
    Application Conditions
    Ambient temperature range
    -10 to +40 °C
    Product Data
    Full product code
    871016334137899
    Order product name
    RC091V LED20S/857 PSU W32L64 KR
    EAN/UPC – product
    8710163341378
    Order code
    911401746922
    Numerator – quantity per pack
    1
    SAP numerator – packs per outer box
    4
    Material no. (12 NC)
    911401746922
    SAP net weight (piece)
    1.550 kg
