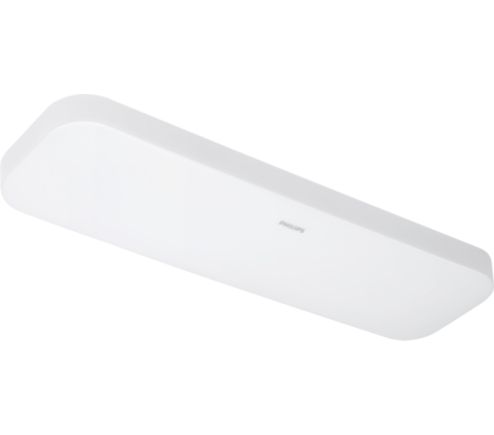

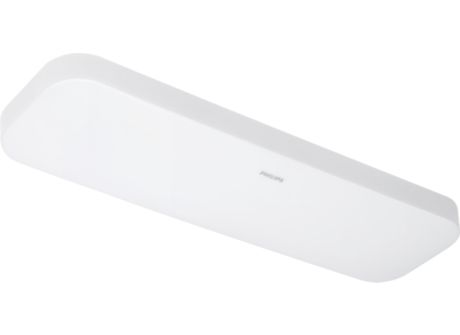

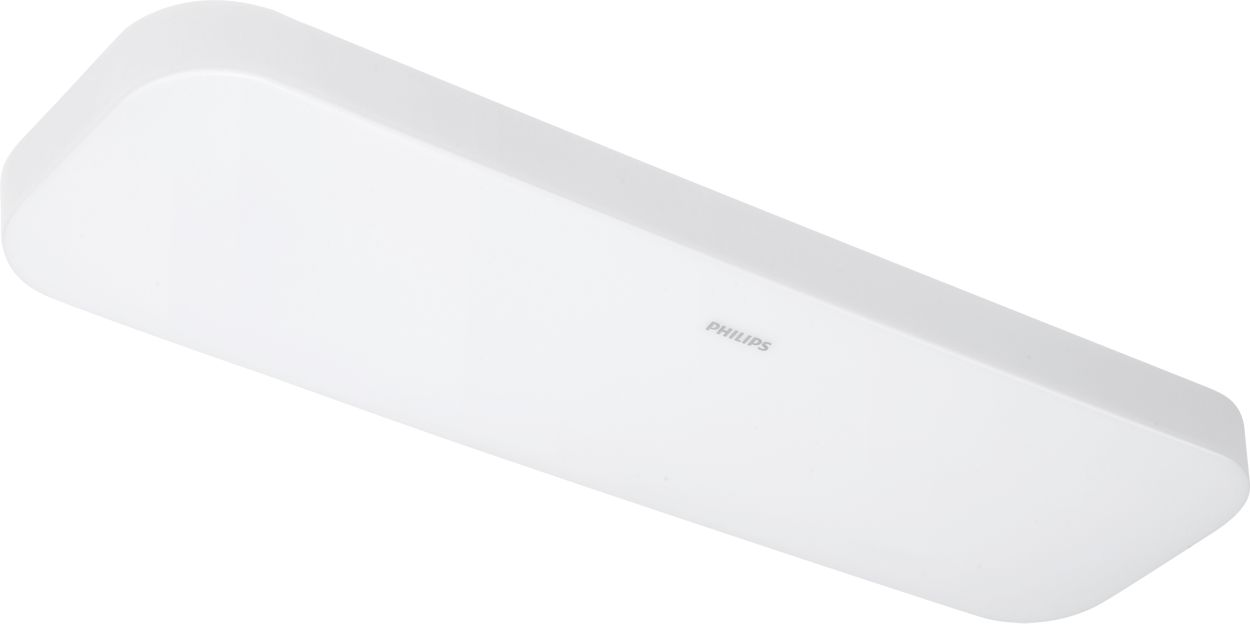

Apex S LED 25W 5700K

Specifications Show all

Operating and Electrical

Power Factor (Fraction)	0.5
Line Frequency	50 or 60 Hz
Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz

Over Time Performance (IEC Compliant)

Median useful life L70B50

20,000 hour(s)

Approval and Application

Ingress protection code	IP20  [Finger-protected]
Warranty period	1 years
EU RoHS compliant	Yes
Flammability mark	For mounting on normally flammable surfaces
Protection class IEC	Safety class I

Product Data

Numerator - Quantity Per Pack	1
Full product code	871951429407300
Material number (12NC)	929002612481
Full product name	Apex S LED 25W 5700K
Numerator - Packs per outer box	1
EAN/UPC - Case	8719514294073
Order product name	Apex S LED 25W 5700K
Order code	929002612481

Controls and Dimming

Constant light output	No
Dimmable	No

General Information

Lighting Technology	LED
Light source replaceable	No

Mechanical and Housing

Overall width	148 mm
Housing Color	White
Dimensions (Height x Width x Depth)	70 x 148 x 510 mm
Housing Material	Metal–Plastic
Overall height	70 mm
Overall length	510 mm

Initial Performance (IEC Compliant)

Initial chromaticity

(0.3287, 0.3425) 6

Temperature

Ambient temperature range

-20 to +40 °C

Light Technical

Light source color	857 daylight
Luminous Efficacy (rated) (Nom)	88.00 lm/W
Luminous Flux	2,200 lumen
Correlated Color Temperature (Nom)	5700 K
Color rendering index (CRI)	80
