    • Comfortable LED ceiling light that's easy on your eyes

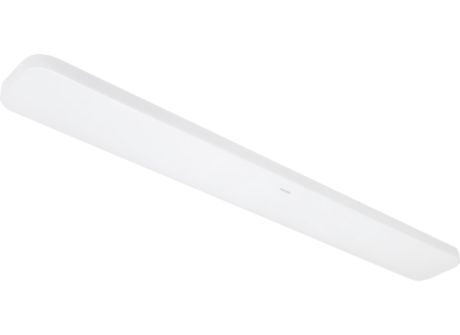

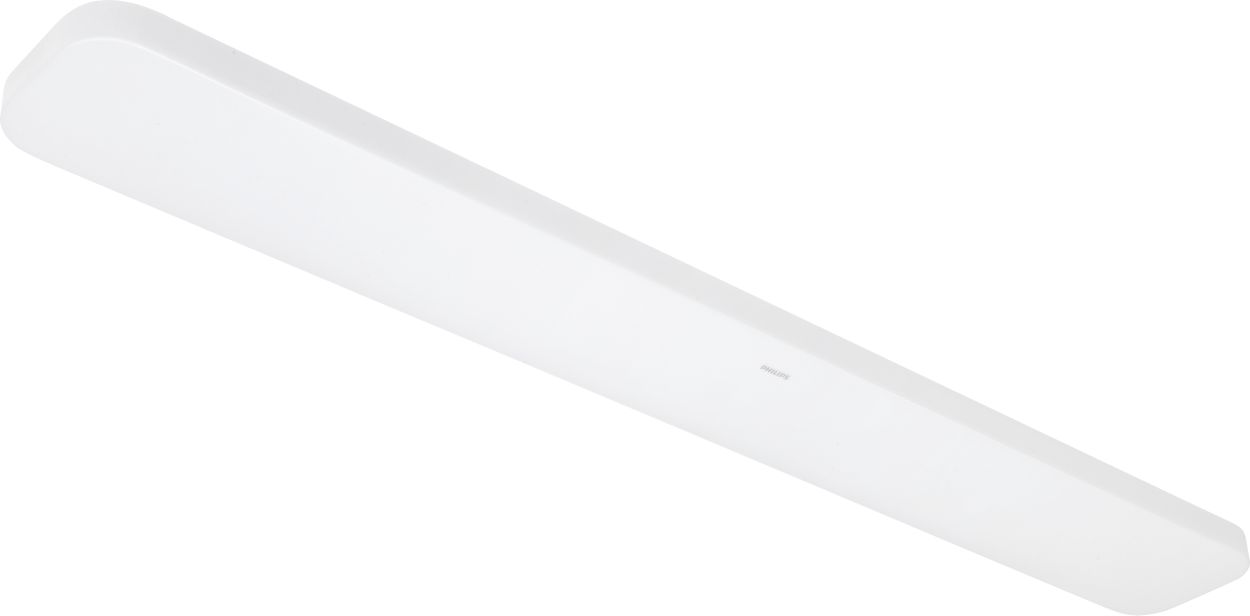

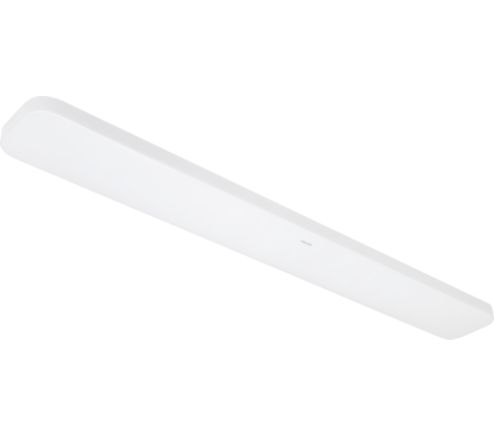

      Apex L LED 45W 5700K
      LED
      Apex L LED 45W 5700K
      Apex Ceiling light

      Apex L LED 45W 5700K

      Downloads

      Leaflet
      Size:714.5 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Factor (Fraction)
    0.5
    Line Frequency
    50 or 60 Hz
    Input Voltage
    220 to 240 V
    Input Frequency
    50 or 60 Hz
    Over Time Performance (IEC Compliant)
    Median useful life L70B50
    20,000 hour(s)
    Approval and Application
    Ingress protection code
    IP20  [Finger-protected]
    Warranty period
    1 years
    EU RoHS compliant
    Yes
    Flammability mark
    For mounting on normally flammable surfaces
    Protection class IEC
    Safety class I
    Product Data
    Numerator - Quantity Per Pack
    1
    Full product code
    871951429411000
    Material number (12NC)
    929002612881
    Full product name
    Apex L LED 45W 5700K
    Numerator - Packs per outer box
    1
    EAN/UPC - Case
    8719514294110
    Order product name
    Apex L LED 45W 5700K
    Order code
    929002612881
    Controls and Dimming
    Constant light output
    No
    Dimmable
    No
    General Information
    Lighting Technology
    LED
    Light source replaceable
    No
    Mechanical and Housing
    Housing Color
    White
    Overall width
    148 mm
    Dimensions (Height x Width x Depth)
    70 x 148 x 1180 mm
    Housing Material
    Metal–Plastic
    Overall height
    70 mm
    Overall length
    1,180 mm
    Initial Performance (IEC Compliant)
    Initial chromaticity
    (0.3287, 0.3425) 6
    Temperature
    Ambient temperature range
    -20 to +40 °C
    Light Technical
    Light source color
    857 daylight
    Luminous Efficacy (rated) (Nom)
    88.00 lm/W
    Luminous Flux
    4,000 lumen
    Color rendering index (CRI)
    80
    Correlated Color Temperature (Nom)
    5700 K
    Installation Diagrams
    Dimension Drawing (without table) - Apex L LED 45W 5700K
    Dimension Drawing (without table) - Apex L LED 45W 5700K
    Performance Diagrams
    Lumen Maintenance Diagram - Apex L LED 45W 5700K
    Lumen Maintenance Diagram - Apex L LED 45W 5700K
    Life Expectancy Diagram - Apex L LED 45W 5700K
    Life Expectancy Diagram - Apex L LED 45W 5700K
    Photometrics
    General uniform lighting - Apex L LED 45W 5700K
    General uniform lighting - Apex L LED 45W 5700K
