    • MASTER LEDcandles – Eye-catching design for chandeliers and other decorative fixtures

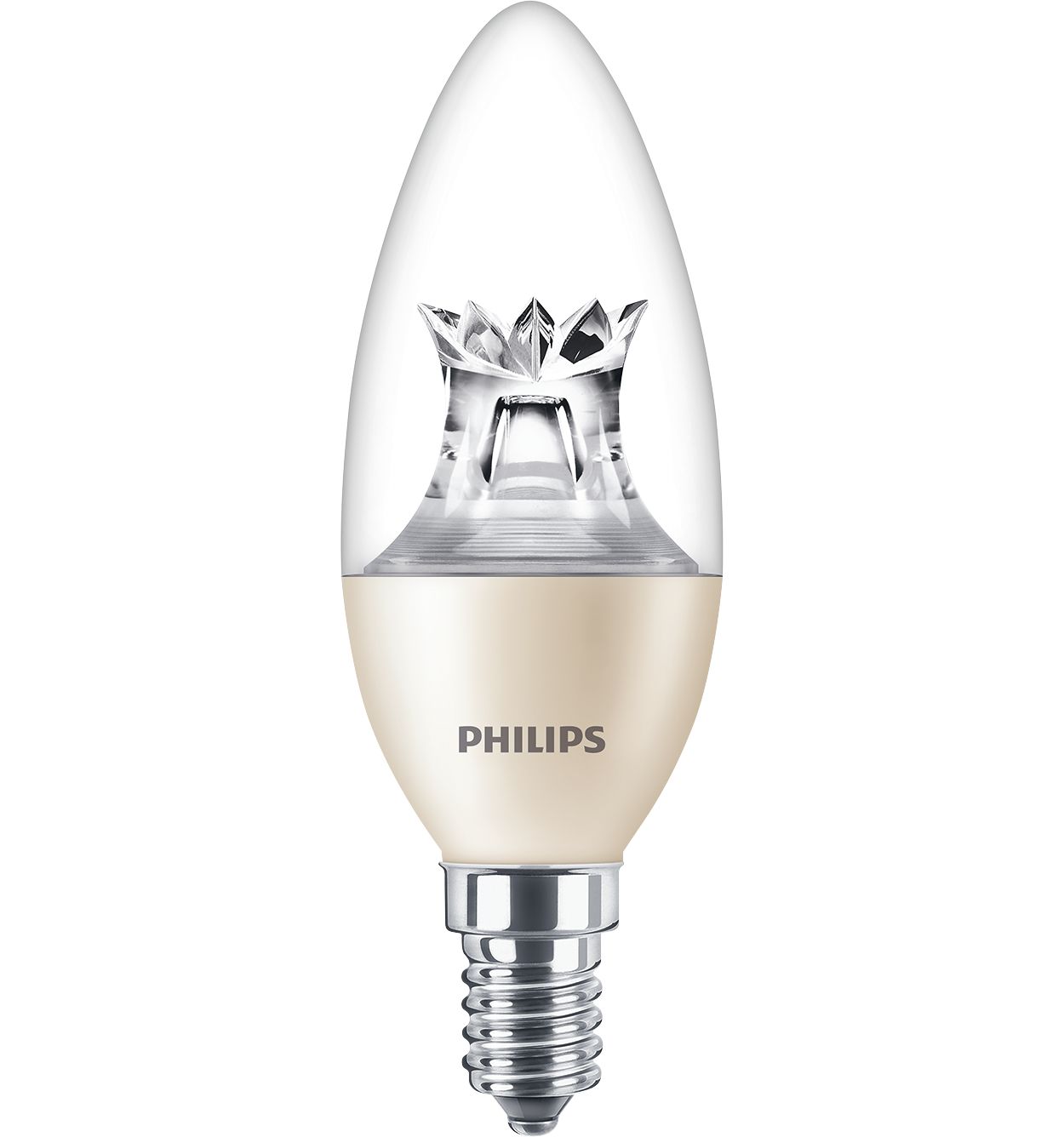

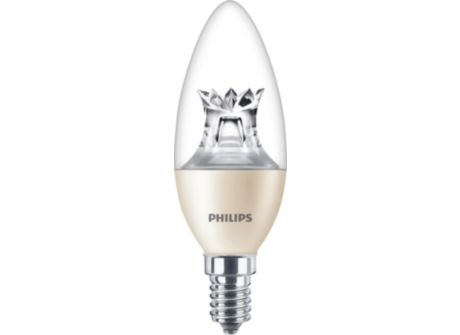

      MAS LEDcandle DT 5.5-40W E14 B38 CL
      LED
      MAS LEDcandle DT 5.5-40W E14 B38 CL
      MASTER Plastic LEDcandles & lusters

      MAS LEDcandle DT 5.5-40W E14 B38 CL

      Downloads

      Leaflet
      Size:633.4 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Factor (Fraction)
    0.9
    Starting Time (Nom)
    0.5 s
    Warm-up time to 60% light
    0.5 s
    Line Frequency
    50 to 60 Hz
    Voltage (Nom)
    220-240 V
    Wattage Equivalent
    40 W
    Input Frequency
    50 to 60 Hz
    Lamp Current (Nom)
    26 mA
    Approval and Application
    EU RoHS compliant
    Yes
    Product Data
    Numerator - Quantity Per Pack
    1
    Full product code
    871951443635000
    Material number (12NC)
    929002491021
    Full product name
    MAS LEDcandle DT 5.5-40W E14 B38 CL
    Numerator - Packs per outer box
    10
    EAN/UPC - Case
    8719514436367
    Order product name
    MAS LEDcandle DT 5.5-40W E14 B38 CL
    Order code
    929002491021
    Controls and Dimming
    Dimmable
    Only with specific dimmers
    Mechanical and Housing
    Bulb Material
    Plastic
    Bulb Shape
    B38
    Bulb Finish
    Clear
    General Information
    Cap-Base
    E14  [E14]
    Lighting Technology
    LED
    Nominal lifetime
    25,000 hour(s)
    Switching Cycle
    50,000
    Temperature
    T-Case Maximum (Nom)
    80 °C
    Ambient temperature range
    -20 °C to 45 °C
    Light Technical
    Color Code
    822-827  [tunable warm white]
    Color Designation
    Warm Glow(WG)
    Luminous Efficacy (rated) (Nom)
    85.00 lm/W
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Color Consistency
    <6
    Luminous Flux
    470 lumen
    Correlated Color Temperature (Nom)
    2200 K
    2700 K
    Color rendering index (CRI)
    80

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     E14 B38 Clear
    E14 B38 Clear
    E14
    E14
    Performance Diagrams
    Lumen Maintenance Diagram - MAS LEDcandle DT 5.5-40W E14 B38 CL
    Lumen Maintenance Diagram - MAS LEDcandle DT 5.5-40W E14 B38 CL
    Life Expectancy Diagram - MAS LEDcandle DT 5.5-40W E14 B38 CL
    Life Expectancy Diagram - MAS LEDcandle DT 5.5-40W E14 B38 CL
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour
    Spectral Power Distribution Colour
    Light Distribution Diagram - MAS LEDcandle DT 5.5-40W E14 B38 CL
    Light Distribution Diagram - MAS LEDcandle DT 5.5-40W E14 B38 CL
    Downloads
    Leaflets
    • Leaflet Localized Commercial Leaflet PDF 633.4 kB
    Green data
    Visuals
    Software plugins
    • IES IES File - MAS LEDcandle DT 5.5-40W E14 B38 CL IES 604 B
