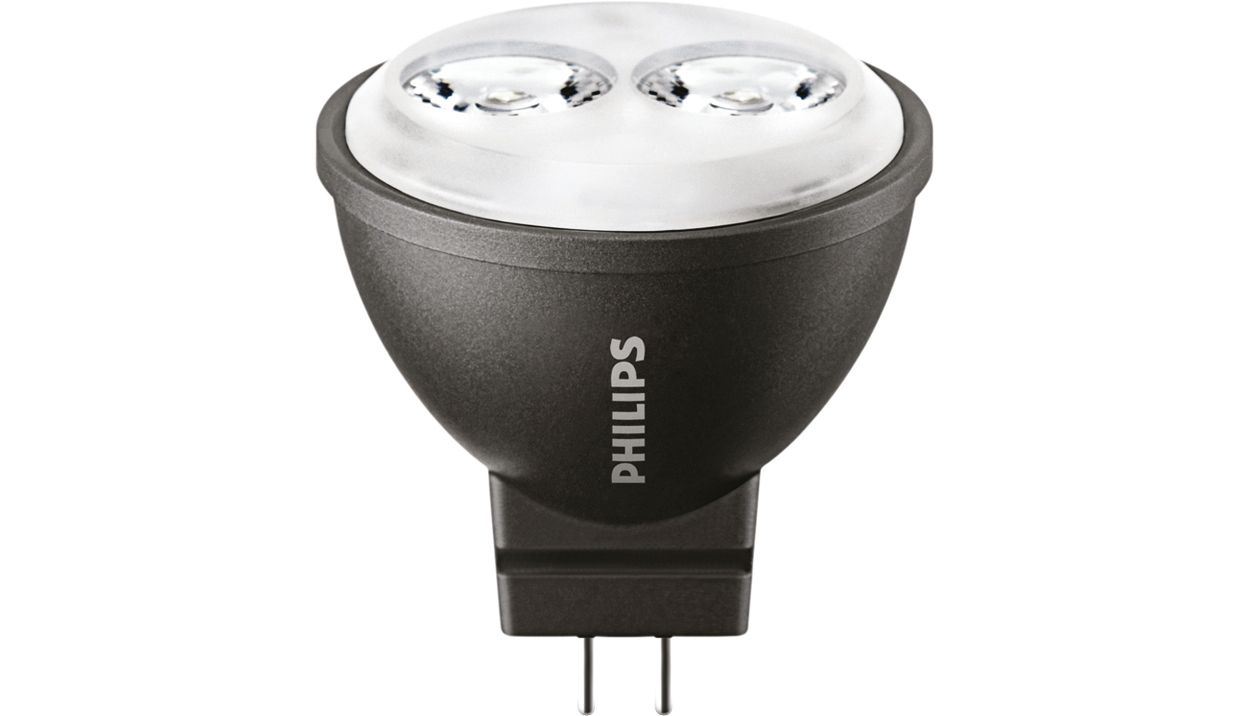

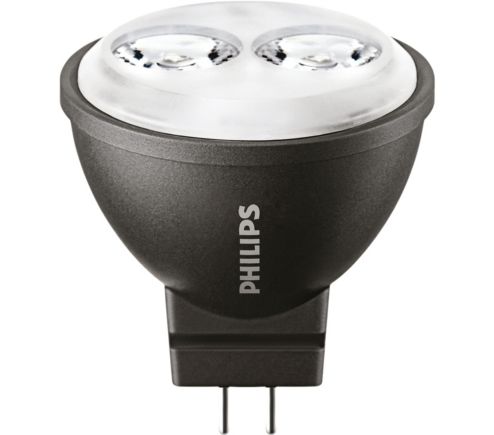

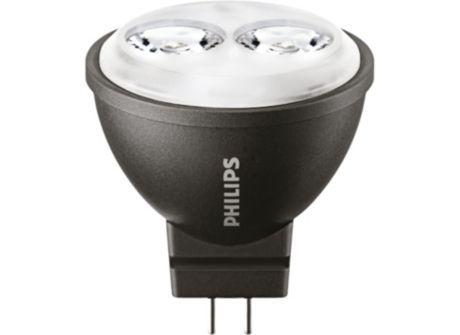

MAS LEDspotLV 3.5-20W 827 MR11 24D

Specifications Show all

Operating and Electrical

Warm-up time to 60% light	instant full light s
Starting Time (Nom)	0.5 s
Power Factor (Fraction)	0.5
Line Frequency	50 to 60 Hz
Voltage (Nom)	12 V
Wattage Equivalent	20 W
Input Frequency	50 to 60 Hz
Lamp Current (Nom)	640 mA

Approval and Application

Energy Consumption kWh/1000 h	4 kWh
EU RoHS compliant	Yes
Suitable For Accent Lighting	Yes

Product Data

Numerator - Quantity Per Pack	1
Full product code	871869641019600
Material number (12NC)	929001123802
Full product name	MAS LEDspotLV 3.5-20W 827 MR11 24D
Numerator - Packs per outer box	12
EAN/UPC - Case	8718696410202
Order product name	MAS LEDspotLV 3.5-20W 827 MR11 24D
Order code	929001123802

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Shape

MR11  [1.375inch/35mm]

General Information

Cap-Base	GU4  [GU4]
Lighting Technology	LED
Nominal lifetime	40,000 hour(s)
Switching Cycle	50,000

Temperature

T-Case Maximum (Nom)

94 °C

Light Technical

Color Code	827  [CCT of 2700K]
Luminous Flux in 90° Cone (Rated)	200 lumen
Color Designation	Warm White (WW)
Beam Angle (Nom)	24 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Color Consistency	<6
Luminous Efficacy (rated) (Nom)	60.00 lm/W
Luminous Flux	210 lumen
Correlated Color Temperature (Nom)	2700 K
Color rendering index (CRI)	80
Luminous Intensity (Nom)	1,000 cd
