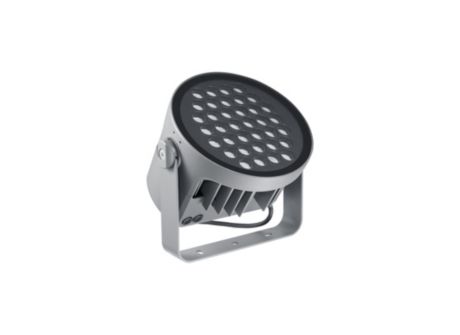

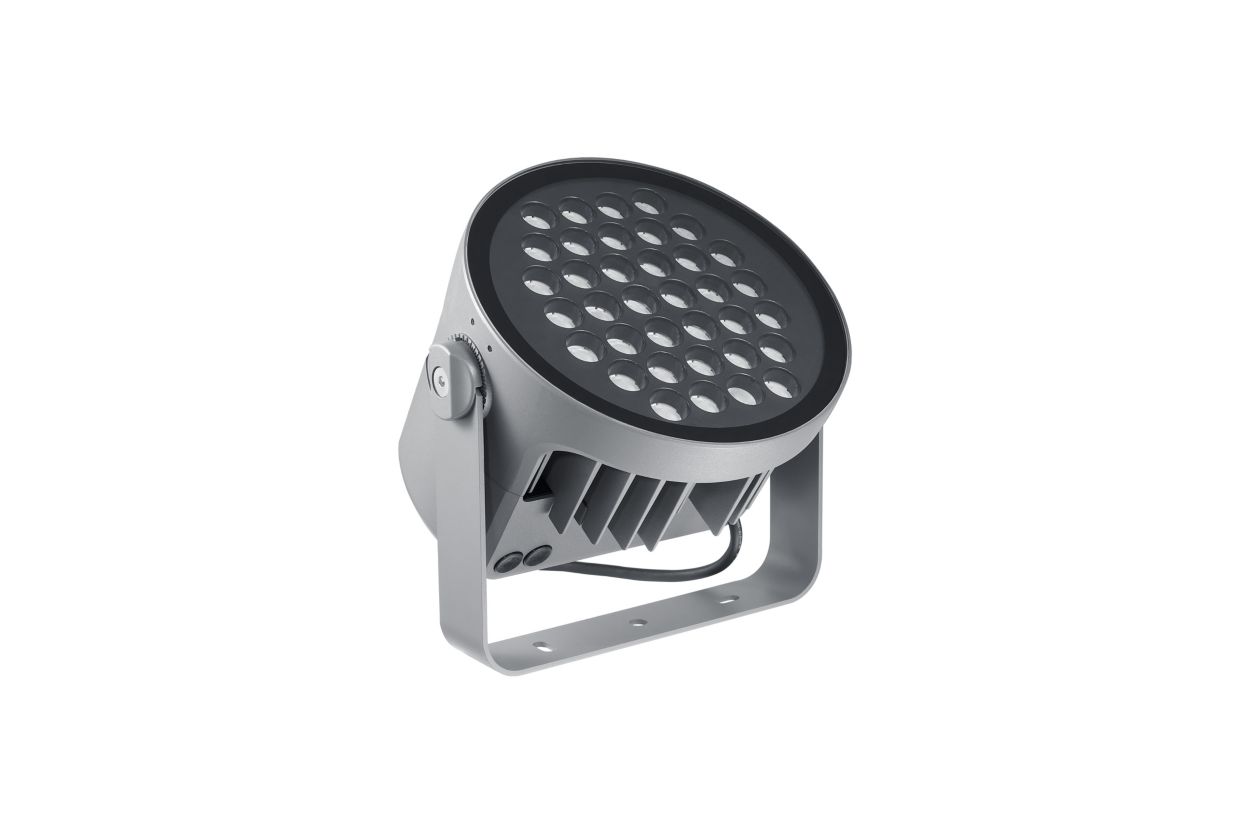

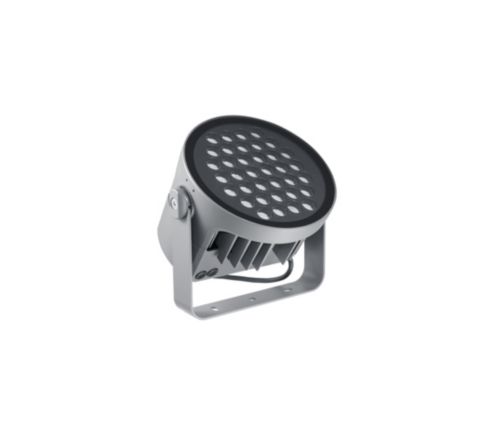

BVP373 32LED RGBNW 220V 30 DMX 80W HP

Specifications Show all

General information

Lamp colour code	RGBW
Driver included	Yes
Optical cover/lens type	GC  [ Clear glass]
Control interface	Dynamic DMX/RDM
Connection	Flying leads/wires and 2 push-in connectors 4-pole
Cable	Cable 0.5 m without plug 3-pole and 2 cables 0.5 m with connector 4-pole
Protection class IEC	Safety class I (I)
CE mark	CE mark

Operating and electrical

Input Voltage	220 to 240 V
Input frequency	50 to 60 Hz
Power factor (min.)	0.9

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing material	Aluminum die–cast
Optical cover/lens material	Polycarbonate
Colour	Dark Grey
Dimensions (height x width x depth)	NaN x NaN x NaN mm

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK06  [ 1 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	4170 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	52 lm/W
Lamp colour temperature	-
Colour Rendering Index	N.A.
Initial input power	80 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	872016950514899
Order product name	BVP373 32LED RGBNW 220V 30 DMX 80W HP
EAN/UPC – product	8720169505148
Order code	911401775323
SAP numerator – quantity per pack	1
Numerator – packs per outer box	2
SAP material	911401775323
Net Weight (Piece)	6.000 kg
