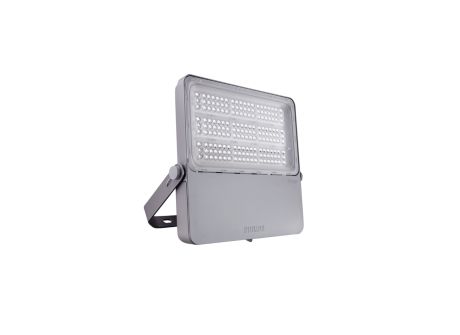

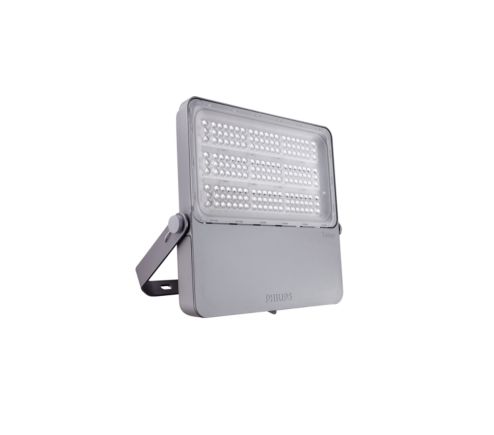

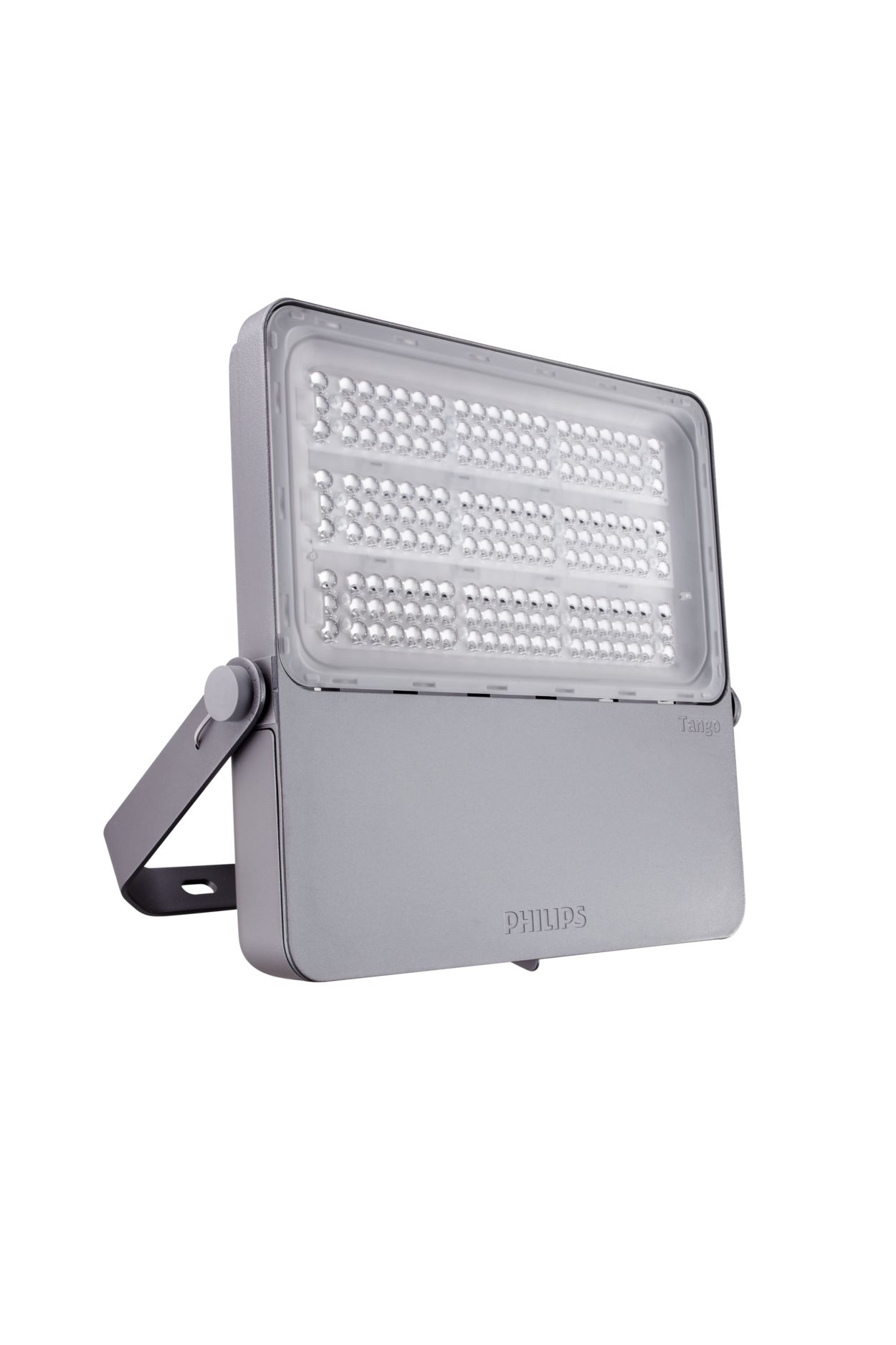

BVP433 LED477/CW 220~240V 380W SAWB GM

Specifications Show all

General Information

Lamp colour code	757 cool white
Driver included	Yes
Optical cover/lens type	PC  [ Polycarbonate bowl/cover]
Control interface	-
Connection	Flying leads/wires
Cable	Cable 1.5 m without plug (C1K5)
Protection class IEC	Safety class I (I)
CE mark	CE mark

Operating and Electrical

Input Voltage	220 to 240 V
Input frequency	50 or 60 Hz
Power factor (min.)	0.9

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing material	Aluminum die–cast
Optical cover/lens material	Polycarbonate
Overall length	523 mm
Overall width	559 mm
Overall height	71 mm
Colour	Grey

Approval and Application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]

Initial Performance (IEC Compliant)

Initial luminous flux (system flux)	47700 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	125.52631578947368 lm/W
Lamp colour temperature	5700 K
Colour Rendering Index	>70
Initial input power	380 W
Power consumption tolerance	+/-10%

Application Conditions

Ambient temperature range

-40 to +50 °C

Product Data

Full product code	871951454065100
Order product name	BVP433 LED477/CW 220~240V 380W SAWB GM
EAN/UPC – product	8719514540651
Order code	911401607407
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401607407
SAP net weight (piece)	12.160 kg
